The coefficient of thermal expansion (CTE) is a crucial property when considering the use of materials in various applications, especially in those where temperature variations are significant. In this blog, we'll delve into the coefficient of thermal expansion of a Teflon rod, and as a Teflon rod supplier, we'll also touch on how this property impacts its applications and why it matters to you.
Understanding the Coefficient of Thermal Expansion
The coefficient of thermal expansion is a measure of how much a material expands or contracts in response to a change in temperature. It is typically expressed in units of per degree Celsius (°C⁻¹) or per degree Fahrenheit (°F⁻¹). Mathematically, it is defined as the fractional change in length or volume of a material per unit change in temperature.
For a linear CTE, the formula for linear expansion is given by:
ΔL = L₀ × α × ΔT
Where:
- ΔL is the change in length
- L₀ is the original length
- α is the linear coefficient of thermal expansion
- ΔT is the change in temperature
For volumetric expansion, a similar formula applies, but with a volumetric coefficient of thermal expansion (β), which is approximately three times the linear coefficient for isotropic materials:
ΔV = V₀ × β × ΔT
Coefficient of Thermal Expansion of Teflon Rods
Teflon, also known as polytetrafluoroethylene (PTFE), is a well - known synthetic fluoropolymer. Teflon rods are widely used in industries due to their excellent chemical resistance, low friction coefficient, and high - temperature stability.
The linear coefficient of thermal expansion for PTFE typically ranges from about 100×10⁻⁶/°C to 250×10⁻⁶/°C in the temperature range of - 20°C to 260°C. This relatively high CTE compared to some metals and ceramics means that Teflon rods will expand or contract more significantly with temperature changes.
The high CTE of Teflon is due to its molecular structure. PTFE has long, flexible polymer chains. As the temperature increases, the kinetic energy of the molecules increases, causing the chains to vibrate and move more freely, which leads to an increase in the overall length and volume of the material.
Impact on Applications
The coefficient of thermal expansion of Teflon rods has both positive and negative impacts on their applications:
1. Sealing Applications
In sealing applications, the relatively high CTE of Teflon can be an advantage. When the temperature increases, the Teflon seal will expand, filling any gaps and providing a better seal. This property makes Teflon rods suitable for use in gaskets and seals in systems where temperature fluctuations are expected. If you are looking for a reliable sealing solution, our Molded PTFE Rod can be an excellent choice.
2. Machining
However, the high CTE can pose challenges during machining. When machining Teflon rods, the heat generated by the cutting tools can cause the material to expand. This expansion can lead to dimensional inaccuracies in the finished parts. To mitigate this, special machining techniques and coolants are often required to maintain a stable temperature during the machining process.
3. Electrical Insulation
In electrical insulation applications, the CTE can affect the long - term performance of the insulation. If the Teflon rod is used in an environment with large temperature variations, the expansion and contraction can cause stress on the electrical components and the insulation itself. Over time, this stress can lead to cracking or delamination of the insulation, reducing its effectiveness.
Types of Teflon Rods and Their CTE

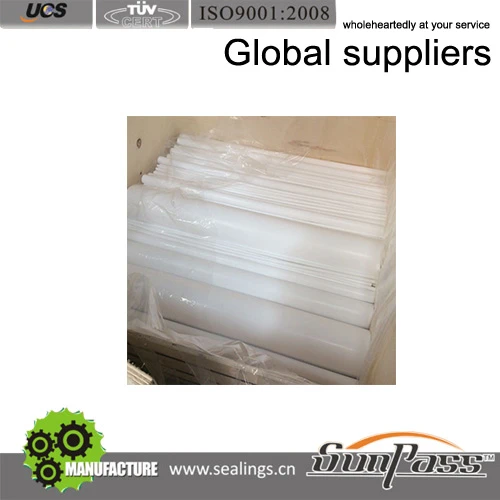

There are different types of Teflon rods, such as PTFE Molded Rod and PTFE Extruded Rod. The manufacturing process can have a slight impact on the coefficient of thermal expansion.
Molded PTFE rods are made by compressing PTFE powder into a mold and then sintering it. This process can result in a more uniform structure, which may lead to a more consistent CTE. On the other hand, extruded PTFE rods are formed by forcing the PTFE material through a die. The extrusion process can introduce some orientation in the polymer chains, which may cause a slight anisotropy in the CTE (i.e., the CTE may be different in different directions).
Controlling the Effects of Thermal Expansion
To control the effects of thermal expansion, several strategies can be employed:
1. Design Considerations
In the design stage, engineers can account for the thermal expansion of Teflon rods. For example, appropriate clearances can be added to the design to accommodate the expansion and contraction of the material. This ensures that the components will function properly even under temperature variations.
2. Composite Materials
Another approach is to use composite materials. By combining Teflon with other materials that have lower CTEs, the overall CTE of the composite can be reduced. This can be particularly useful in applications where high precision is required.
3. Temperature Control
Maintaining a stable temperature in the operating environment can also help to minimize the effects of thermal expansion. This can be achieved through the use of heating or cooling systems, depending on the application requirements.
Why Choose Our Teflon Rods
As a Teflon rod supplier, we understand the importance of the coefficient of thermal expansion in different applications. We offer a wide range of Molded PTFE Rod and PTFE Extruded Rod products with consistent quality. Our manufacturing process is carefully controlled to ensure that the CTE of our Teflon rods is within the expected range, providing reliable performance for your applications.
If you are in the market for Teflon rods and need more information about the coefficient of thermal expansion or any other product - related details, we encourage you to contact us. Our team of experts is ready to assist you in selecting the right Teflon rod for your specific needs and to answer any questions you may have. Whether you are working on a small - scale project or a large - scale industrial application, we can provide the solutions you require.
References
- "Handbook of Plastics, Elastomers, and Composites" by Charles A. Harper
- "Polytetrafluoroethylene (PTFE): Properties and Applications" by various industry experts
- Technical data sheets from leading PTFE manufacturers
