TENGLONG SEALING PRODUCTS MANUFACTORY, YUYAO
| 36-Carrier Square Braider with 4 Orbits | |
| Machine Size(mm) | 1900*2100*2450 |
| Working Table Size(mm) | 1360*1360 |
| Motor Power | 2.2kw(50Hz 380v) |
| Carrier Speed | 20m/minute |
| Spindle Speed | 220RPM/minute |
| Weaving Range | 10*10--80*80 |
| Weaving Speed | Stepless Control |
| Yarn Tube Volume | 92*180 |
| Proposed Hammer Choice | 0.8kg 1.0kg 1.4kg total 72pcs |
| Whole Machine Weight | 2100kg |
|
Remarks:The backplane is designed for outside circle-shaped with flat and gear.Wastedrops down automaticaaly. Especially suited for multi-dust material such as graphite and so on. |
|

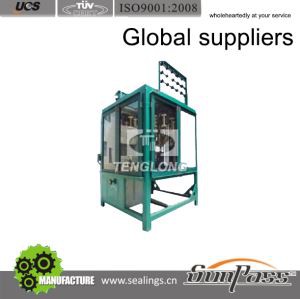

Sunpass 4 Trucks 36 Carriers Square Braiding Machine
The Sunpass 4 Trucks 36 Carriers Square Braiding Machine is a high-precision industrial braiding system designed specifically for producing square-shaped braided structures with exceptional strength, stability, and uniformity. Equipped with 36 carriers distributed across 4 robust braiding trucks, this machine offers a balanced configuration that enables complex braid patterns, enhanced structural integrity, and consistent product performance.
With its advanced mechanical design, the 36 Carriers Square Braiding Machine operates smoothly with low vibration, ensuring reliable long-term operation even under demanding production schedules. Its heavy-duty construction and optimized transmission system help maintain precise carrier movement and consistent tension control, resulting in highly uniform and durable square braids.
This machine supports a wide range of raw materials, including:
Polyester, nylon, PP synthetic fibers
Cotton yarns and blended textile fibers
High-performance aramid (Kevlar) fibers
Metal wires and technical filaments
Thermoplastic monofilaments
Due to its flexibility in processing different materials, the equipment is widely used in industries such as automotive, electronics, industrial textiles, footwear manufacturing, marine applications, aerospace components, and consumer goods production. Typical products include square ropes, reinforcement cords, structural braids, shoelace cores, lifting straps, safety webbings, and other high-strength square braided items.
The Sunpass 4 Trucks 36 Carriers Square Braiding Machine excels in applications that require:
High tensile strength
Dimensional stability
Complex structural patterns
Resistance to abrasion and environmental stress
In addition to its high-performance braiding capabilities, the machine is engineered for ease of operation and simplified maintenance. Operators can easily adjust braiding speed, tension levels, and material feeding to achieve the desired product characteristics. Custom options such as automated take-up systems, special carrier configurations, and speed-control upgrades are available to meet unique production requirements.
With its superior precision, strong material compatibility, and proven reliability, the Sunpass 4 Trucks 36 Carriers Square Braiding Machine has become a preferred choice for manufacturers seeking consistent output quality, operational efficiency, and long-term production stability in square braiding applications.
